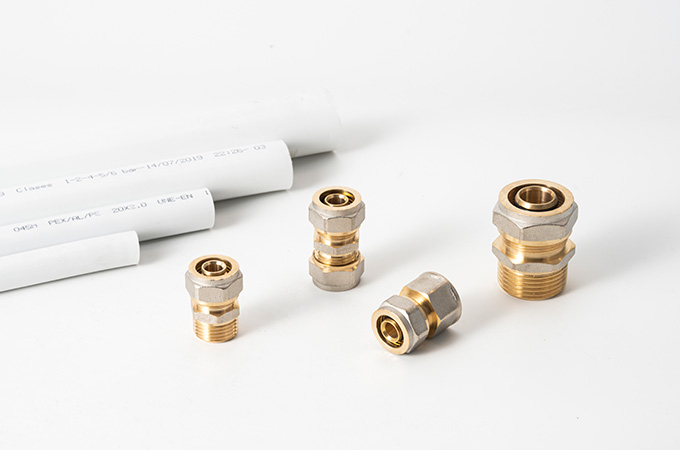

COMPRESSION FITTINGS
Brass fittings is widely used in various pipeline connections, such as water supply, heating, gas supply and other fields.
Download
*Download the attachment to view product data in detail
Introduction:
Compression fitting consists of fitting body, screw cap, brass ring, 0-ring and gasket.
Working Pressure:≤1Mpa
Medium: Cold and hot water
Working Temperature:0℃~95℃
Thread meet ISO-228 standard.
Material:
Fitting Body: CW617N/Hpb57-3
Screw cap: CW617N/Hpb57-3
Brass ring: CW617N/Hpb57-3
O-ring: EPDM/NBR
Gasket: PTFE
Characters:
1. Simple structure,reliable sealing performance, beauty.
2. No welding, good performance of pipe installation and uninstallation.
3. Easy maintenance.
TYPICAL INSTALLATION
1. Remove burrs
2. Set the brass ring and the screw cap on the pipe.
3. Insert the pipe to the end of nipple and pull the screw cap back to the fitting body.
4. Use the wrench to tighten the screw.
