SPECIFICATION DATA:

Working temperature: Max 95℃

Nominal pressure:10Bar

Reference standard: AS/NZ 2537.2 AS4176.3

Pipe grade: SDR9

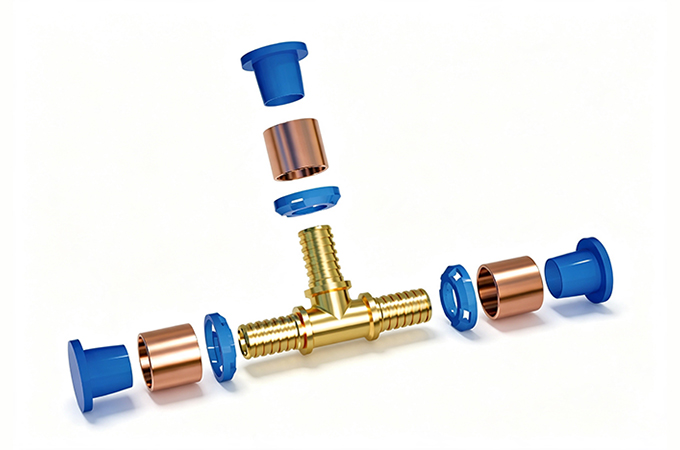

MATERIAL:

1.Body: lead free de-zincification resistant brass CW511L

2.Ring: Annealed copper crimp rings

3.protective end caps & retaining rings: LDPE (Low Density Polyethylene)

CONSTRUCT FEATURE

1.Longer bar for better sealing and grip performance.

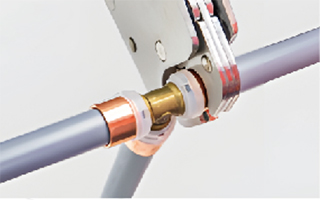

2.Additional pipe grip bar to hold the pipe in place while crimping.

3.Positive lock feature, to ensure rings do not fall off while still being easily replaceable.

4.Protective end caps to ensure the the fitting avoid from damage and dirt.

5.End caps are colour coded, to help you identify easily.
